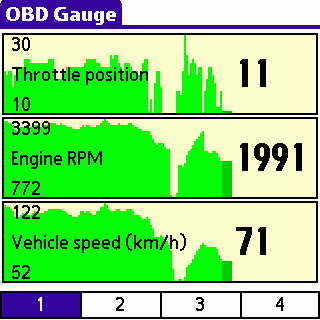

OBD Gauge for PalmOS

Features
bullet displays diagnostic sensor data
bullet reads diagnostic trouble codes
bullet clears the "check engine" light
bullet 0 to 100 km/h performance timer
bullet records sensor data for OBD Graph

Compatibility

Any Palm with a serial port. This includes most models except for a few that are USB only (more details).

Download
bullet OBD Gauge 1.9 for PalmOS
bullet Source Code (requires Palm OS Developer Suite)

horizontal rule

OBD Gauge for Pocket PC

Features
bullet displays diagnostic sensor data
bullet reads diagnostic trouble codes
bullet clears the "check engine" light
bullet records sensor data for OBD Graph

Compatibility

Any Pocket PC 2002 or 2003 with a serial port. Purchase the appropriate serial cable for your PDA.

Download
bullet OBD Gauge 1.3 for Pocket PC
bullet Source Code (requires Microsoft Visual Studio .NET 2003)

Prerequisites
bullet  Microsoft .NET Compact Framework

horizontal rule

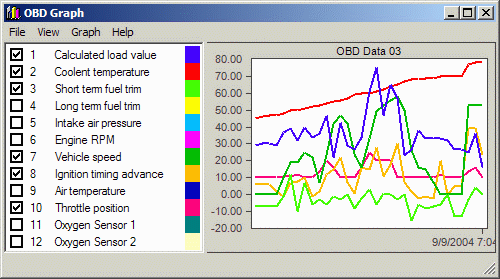

OBD Graph for Windows

Features
bullet displays sensor data recorded by OBD Gauge
bullet draws line graphs for selected sensors
bullet shows tabular view of sensor data
bullet exports data to CSV file for Excel or other applications

Download
bullet OBD Graph 1.1 for Windows
bullet Source Code (requires Microsoft Visual Studio .NET 2003)

Prerequisites
bullet Microsoft .NET Framework

horizontal rule

OBD-II Interfaces

ScanTool

ScanTool.net offers these OBD-II interfaces:
bullet ElmScan ISO
bullet ElmScan VPW
bullet ElmScan PWM

Purchase the version appropriate for your car. You will need an OBD-II cable, and a serial adapter to connect the PDA serial cable to the ElmScan serial connector.

Multiplex Engineering

Multiplex Engineering offers these OBD-II interfaces for PDAs:
bullet T16-006
bullet T16-003 (shown here)

The OBD-II protocol is software selectable. The hardware supports ISO, VPW, PWM, and KWP. These interfaces plug directly into a serial PDA cable. The T16-006 requires an OBD-II cable; the T16-003 has an integral OBD-II connector.

Vital Engineering

Vital Engineering is a U.K. based company offering a unique product that lets you connect wirelessly using BlueTooth. The module plugs directly into the OBD-II connector of the vehicle. No cables are needed when used with a BlueTooth capable Palm, Pocket PC, or Windows PC.


horizontal rule

More Info
bullet Screen shots
bullet Connection ideas
bullet Mounting ideas
bullet Change log

Links
bullet OBD-Codes - trouble codes resource site
bullet OBD-II Protocols by Manufacturer
bullet troublecodes.net - look up your manufacturer specific DTCs
bullet Kreyder Motorsport - OBD-II interface from France

No Warranty

Because this software is free of charge, there is no warranty. It is provided "as is" without warranty of any kind, either expressed or implied.

Questions?

Please send your questions and comments to Dana Peters at:

I do respond to everyone who writes, but please be patient. I tend to let my email regarding OBD Gauge accumulate and respond every two weeks.

If you'd like to buy me a beer, I'd be pleased to accept a PayPal donation. Please do not feel obligated to donate; OBD Gauge is free software.

Donate $5 Canadian
to buy Dana a beer!
Thank you to everyone who has taken the time to donate already, I appreciate it.
